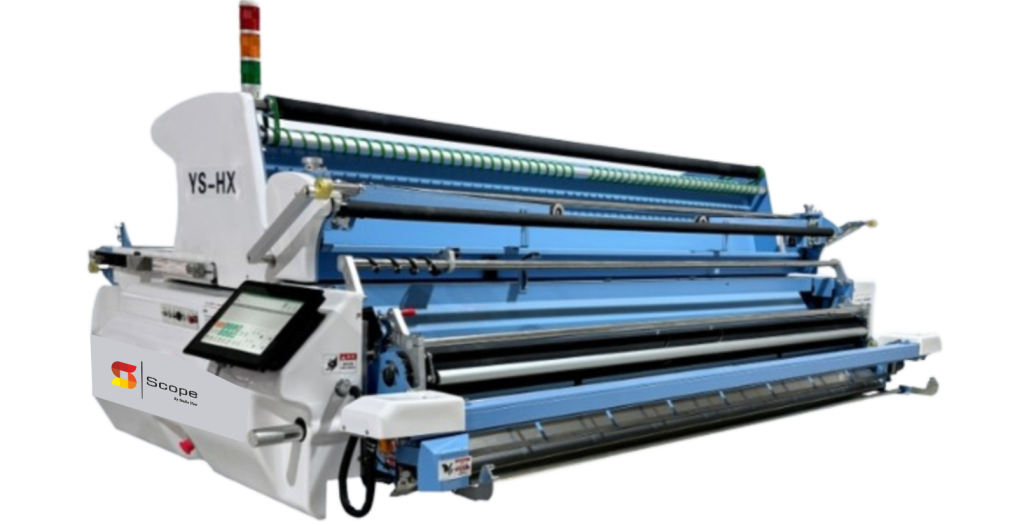

Intelligent Automatic Fabric Spreading Machine
Machine Features
- Remote Monitoring: Enables real-time monitoring of the production floor from a remote computer terminal, improving overall factory management solutions.
- Dual-Purpose Machine: A single machine that serves two functions and is compatible with both rolls and folded fabric.
- User-Friendly Interface: Features a simple, flat touch display with human-centered design and support for multiple languages.
- Economical Investment: Designed to be easy to install, with low training costs, affordable parts, and low maintenance requirements.
- Decision Support: Includes a multi-dimensional digital dashboard that provides real-time analysis of factory operations for better management insights.
- Factory Efficiency: Digital management tools are used to improve operational efficiency, reduce costs, and enhance order-handling capabilities.
- IoT Integration: Connects with apps, PCs, and production line dashboards to create a centralized digital management hub.
Parameters
| Parameter | YS-HX190 | YS-HX210 |
|---|---|---|
| Motor power (kW) | 1 | 1 |
| Bench width (mm) | 1900mm / 75″ | 2100mm / 83″ |
| Space width (mm) | 2130mm / 84″ | 2330mm / 92″ |
| Travel speed (m/min) | 90 | 90 |
| Fabric weight (kg) | 60 | 60 |
| Fabric diameter (mm) | 450 | 450 |
| Voltage | 1P / 220V | 1P / 220V |
| Machine size (mm) | 2600x1800x950 | 2800x1800x950 |
| Net/gross weight (kg) | 570 / 860 | 610 / 970 |
| Packing size (mm) | 2800x2000x1250 | 3000x2000x1250 |
| Floor Height | ||
| Single pull (standard) | 220 mm | |
| Single pull (extended) | 300 mm | |
| Double pull (standard) | 150 mm | |
| Double pull (extended) | 230 mm | |
