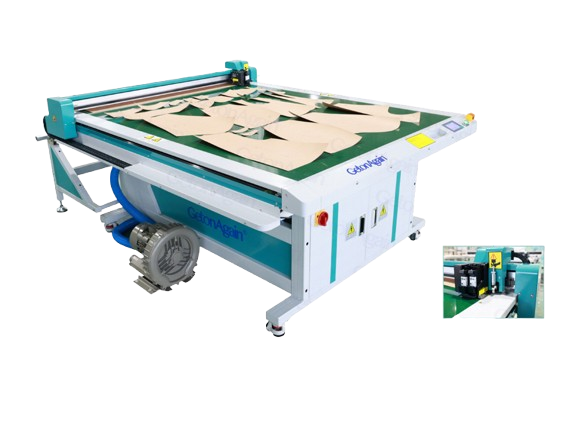

The Flatbed Inkjet Cutting Plotter is an advanced, heavy-duty solution designed for high-precision sample making and pattern cutting. Built with an aviation aluminum alloy table for exceptional durability and cost-effectiveness, this machine handles kraft paper and other sample auxiliary materials with ease. It features an integrated paper rack, automatic feeding, and a pneumatic slide to drastically reduce manual operation while ensuring pinpoint accuracy.
Key Features & Innovations
- Robust Drive & Material Fixing: Driven by a servo motor with a steel belt and linear guide for ultimate precision, while a powerful 1.1KW fan provides firm vacuum adsorption for material fixing.
- Versatile Cutting: Configurable with a long or short rotating knife, and fixed or elastic sleeves to accommodate versatile cutting requirements (cutting depth up to 2 mm).
- Reliable Ink System: Utilizes standard HP45 cartridges with easily replaceable nozzles, guaranteeing low maintenance and high reliability.
- Smart Networking: Supports RJ45 network data transmission for streamlined operation and rapid, one-time fast buffer transfers.
- Modern Interface: Operated via an intuitive LCD touch screen and features a fully upgradable control system.
- Seamless Compatibility: Compatible with mainstream CAD file formats and utilizes standard HPGL command systems. Optionally pairs perfectly with Garment CAD software for end-to-end pattern design.
- Practical Design: Features a split-frame design for easy transportation and installation across various factory environments.
| Model Reference | Cutting Area | Machine Size (L x W x H) |
|---|---|---|
| GOA-SP-1-2,FP-NM-ID+SKC-1-1200X900-SGAF-WC2+K-AF-1P220 | 1200 mm × 900 mm | 2030 mm × 1370 mm × 1000 mm |
| GOA-SP-1-2,FP-NM-ID+SKC-1-1500X1200-SGAF-WC2+K-AF-1P220 | 1500 mm × 1200 mm | 2330 mm × 1670 mm × 1000 mm |
| Specification | Details |
|---|---|
| Max. Printing Speed | 95 m²/h |
| Max. Cutting Speed | 1000 mm/s |
| Cutting Depth | ≤2 mm |
| Cutting Tool | Rotating Knife |
| Applied Materials | Kraft paper and other sample auxiliary materials |
| Material Fixing | Vacuum adsorption |
| Command System | HPGL command |
| Buffer Capacity & Data | One-time fast transfer | RJ45 Transmission |
| Control Panel | LCD touch screen |
| Power Supply | Single phase AC220V ±10% 50/60Hz |
| Working Environment | Temp: 0-40°C | Humidity: <85% (at 25°C, no condensation) |
