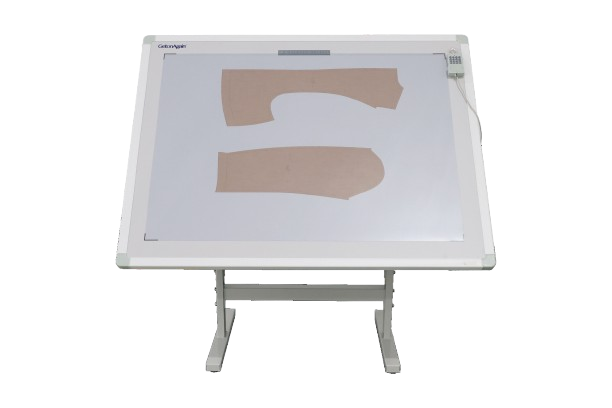

The Pattern Digitizer is a powerful, industrial-grade hardware solution designed for traditional manual drawing digitization. It allows you to effortlessly read and convert physical paper patterns into precise digital CAD files. With convenient positioning and simple operation, it accurately captures intricate pattern details to significantly speed up your design and production workflows.
Key Features & Benefits
- High-Speed Digitization: Speeds up the design phase by quickly and accurately reading paper patterns into the system.
- User-Friendly Interface: Engineered for simple operation with a highly intuitive interface.
- Universal Compatibility: Seamlessly integrates with a wide variety of CAD systems and supports more than 30 digital formats, ensuring it fits perfectly into your existing tech stack.
- Cross-Industry Application: While highly popular in the clothing industry and fashion design, this robust digitizer is also widely utilized in surveying and mapping, mining, stamping, and environmental protection sectors.
Supported CAD Ecosystems
The Pattern Digitizer boasts strong compatibility and easily connects with major global CAD brands, including:
- AutoCAD, Optitex, Tajima series, and MicroStation
- MapGIS, Citystar, Mapinfo, Arcinfo, SuperMap, and Openinfo
- Arise, Billy, Cyber, GmCAD, GerjMap, ViewGIS, MapEngin, ILWIS, SvcCAD, and DOCAD
| Model | Working Area | Machine Size (L x W x H) |
|---|---|---|
| GA-D3648C (A0) | 36″ x 48″ | 1600mm x 1400mm x 1300mm |
| GA-D4460C (A00) | 44″ x 60″ | 1800mm x 1500mm x 1300mm |
Hardware Details
- Operating System Support: Microsoft XP / WIN7 / WIN10
- Power Requirements: Single-phase AC 220V ±10% 50/60Hz
- Hardware Connectivity Port: Standard RS-232
- Mounting Options: Comes with a Simple stand (standard) or an optional Lifting stand
