Scope – Automatic Fabric Cutting Machine

High-Speed, Precision Cutting for Modern Manufacturing

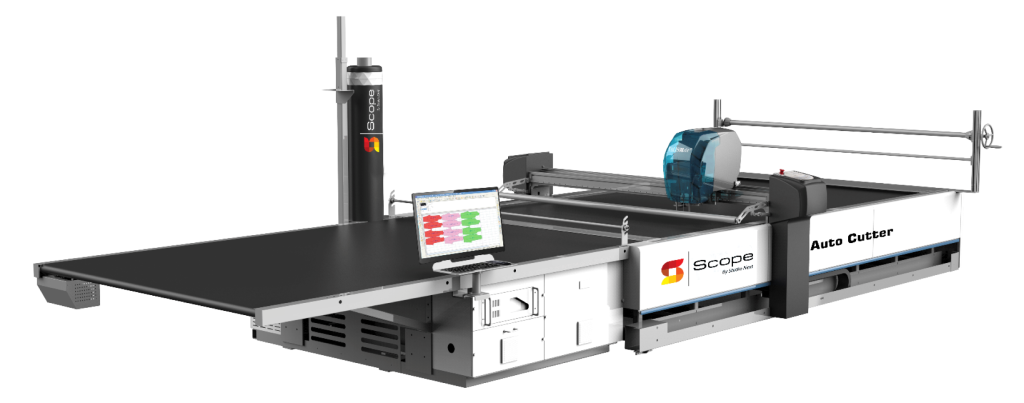

The SCOPE Automatic Fabric Cutting Machine (featuring models like the YS series and The Denim Cutter YS-1818/YS-2018) is engineered to deliver exceptional cutting accuracy, maximum material utilization, and high-speed production. Equipped with advanced 4-axis control systems and smart vacuum technology, it minimizes fabric waste and streamlines high-volume manufacturing.

Key Features & Technological Advantages

Cutting-Edge Precision & Performance

• Cutting Height: Capable of handling compressed cutting heights up to 7 cm or 9 cm depending on the model.
• Smooth Curve Cutting: Features specially designed, high-efficiency knives imported from Japan to handle complex curves perfectly.
• Push Case Adjustment: A unique technique designed specifically for high-stretch, airproof, and surface-coating fabrics to leave space between the knife plate and fabric layer during high-speed cutting.
• Zero-Gap Cutting: Minimizes gaps between patterns on a marker to significantly reduce fabric waste.
• Smart Blade Care: Utilizes diamond-made double-wheel counter-rotating stones for uniform blade sharpening, alongside a smart blade correction sensor.
• Side-Vacuuming Technology: Automatically removes dust particles sideways to prevent bristle jamming and extend the lifespan of the bristles.

Intelligent Software & Control

• Adjustable Vacuum: Features 7 different levels of vacuum pressure adaptable to various fabric specifications (up to -22 kPa maximum negative pressure).
• New Interface & Smart Software: Includes a queue-based marker system, parameter presets, repetitive cutting options, and the ability to start a new marker from any point.
• Speed Adjustment: Beeline and arc cutting speeds can be automatically or manually configured based on fabric height and type.
