Achieve Flawless, Tension-Free Fabric Spreading

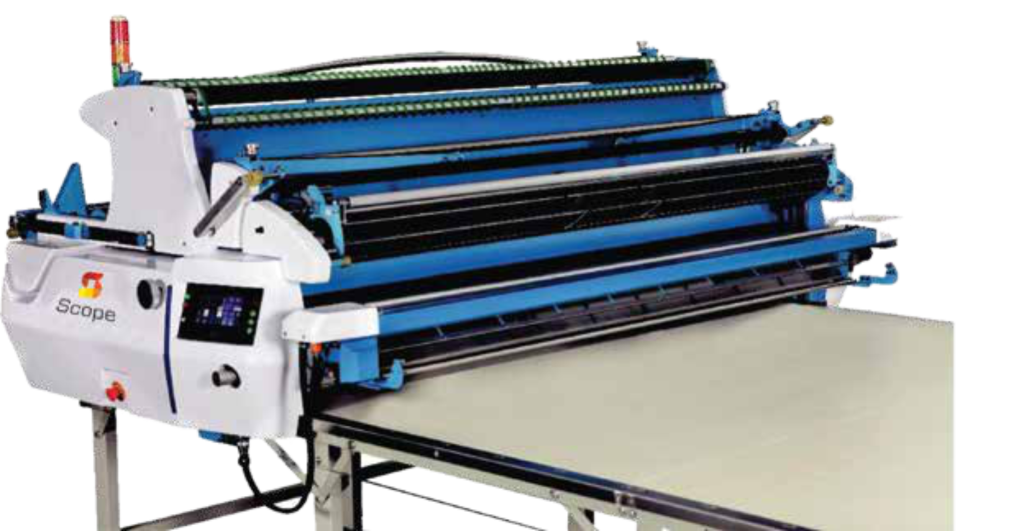

The Scope Automatic Fabric Spreading Machine is engineered to transform your cutting room operations by delivering uniform fabric layers, precision cutting, and waste-free outputs. Powered by an independent servo control system, it guarantees completely tension-free spreading for even the most delicate or highly elastic fabrics, significantly enhancing cutting accuracy while reducing material wastage.
Key Features & Advantages
Precision & Quality Control
- Tension-Free Spreading: Driven by an independent servo control system that prevents fabric stretching and distortion during laying.
- De-Wrinkling & Expanding System: Features an automatic fabric expanding system and a new arc mechanism that ensures fluid material feeding and expands elastic fabrics perfectly without creases.
- Encoder Positioning: Advanced encoder technology guarantees highly accurate spread lengths every time.
- Self-Sharpening Blade: Built-in sharpening mechanism ensures the cutting blade consistently delivers a clean, sharp cut.
Smart Automation & Efficiency
- Flexible Start & End Points: Define starting and ending points at any position on the table to optimize workflow.
- Automatic Origin Return: The spreader automatically returns to the origin point for quick fabric reloading or immediately when a fabric roll runs empty.
- Energy Saving: Features an automatic power shut-off that powers down the machine after 5 minutes of idle time.
Safety & Ergonomic Design
- Emergency Stop Protection: Engineered so that spread-laid fabric is never pulled or damaged if the emergency stop is triggered.
- Streamlined Aerodynamic Shape: Modern contour design minimizes wind disturbance, operational noise, and vibration during high-speed travel.
Spreading Methods
- One-way spreading
- Zigzag spreading
- Multiple length spreading
Technical Specifications
| Specification Parameter | YS-160 | YS-190 | YS-210 |
|---|---|---|---|
| Maximum Fabric Width | 63″ (1600 mm) | 75″ (1900 mm) | 83″ (2100 mm) |
| Table Width | 72″ (1830 mm) | 84″ (2130 mm) | 92″ (2330 mm) |
| Travel Speed (Max) | 90 m/min | 90 m/min | 90 m/min |
| Max Fabric Weight | 60 kgs | 60 kgs | 60 kgs |
| Max Fabric Diameter | 450 mm | 450 mm | 450 mm |
| Lay Height Capacity | One-way: 220 mm, 300 mm Face-to-Face: 150 mm, 230 mm |
||
| Power Supply | Single Phase 220V Motor Capacity: 1 kW |
||
| Machine Dimensions (L×W×H) | 2300 × 1350 × 800 mm | 2600 × 1800 × 950 mm | 2800 × 1800 × 950 mm |
| Net / Gross Weight | 445 / 675 kgs | 570 / 860 kgs | 610 / 970 kgs |
