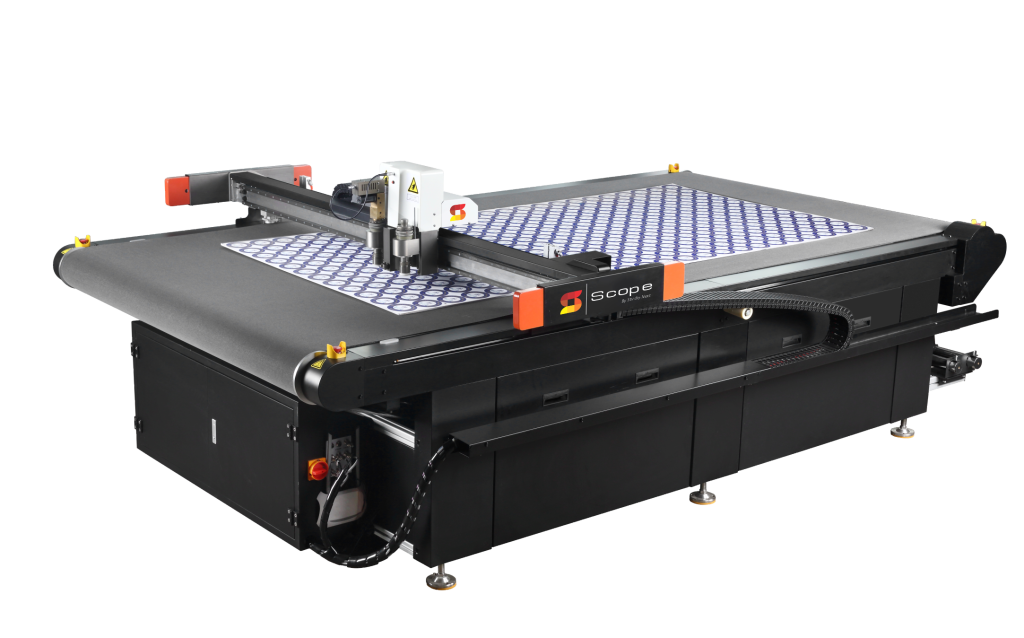

High-Precision, Fully Automatic Sample Cutting
The Scope Automatic Sample Cutting Machine is engineered for precision, speed, and reliability in modern cutting rooms. Designed to outperform traditional manual cutting methods, it seamlessly handles complex shapes, patterns, and auxiliary materials with exceptional repeatability and clean results.
Key Features & Advantages
Advanced Cutting & Performance
- Fully Automatic Operation: Ensures exceptional ease of use and consistent, high-performance output.
- High-Precision Cutting: Delivers accurate and clean results every time with a repeat precision of 0.01mm.
- Superior Table Bed: Features an aluminium plate bed that provides significantly enhanced durability and stability compared to standard PVC beds.
- Advanced Drive System: Powered by high-quality Japanese drives and motors to guarantee long-lasting performance and efficiency.
- Smart Material Handling: Equipped with a rolling platform featuring a smooth and reliable Italian conveyor belt and an auto material feeder device.
Configuration Options & Tools
- Standard Tools: High-Speed Oscillating Tool, Pen, and Cursor Position.
- Optional Tools: Rotary Tool, Wheel Knife Tool, and Punching Tool.
- Connectivity & Control: Features Wi-Fi connectivity for seamless remote monitoring and control, alongside a high-speed Ethernet port interface for synchronous data transmission with any CAD software.
- Material Fixing: Secure vacuum suction ensures materials remain completely stable during high-speed cutting.
Technical Specifications & Models
| Specification | B4-1518C | B4-2516C | B4-2518C |
|---|---|---|---|
| Effective Cutting Area | 1500 × 1800 mm | 2500 × 1600 mm | 2500 × 1800 mm |
| Power | 9 KW | 12.5 KW | 12.5 KW |
| Max Cutting Speed | 300–800 mm/s | ||
| Cutting Thickness | ≤ 10 mm | ||
| Cutting Materials | PVC, TPU, PU | ||
| Repeat Precision | ≤ 0.01 mm | ||
| Software Resolution | 0.025 | ||
| Control Panel | 7-inch Colour Touchscreen | ||
| Command Mode | HPGL, PLT, DXF | ||
| Voltage / Power | AC 380V ± 10% 50Hz | ||
| Working Temperature | -10°C ~ 45°C | ||
