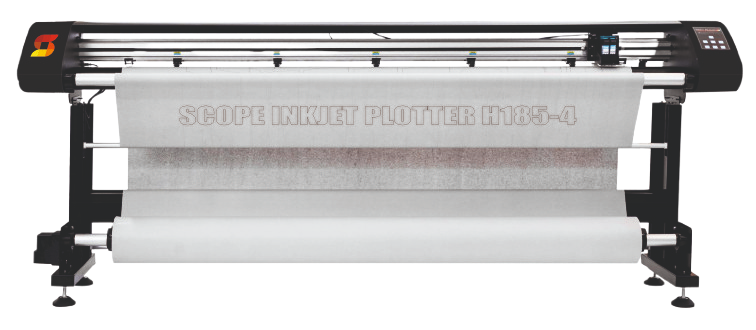

The Scope Inkjet Plotter (Model H185-4) is a highly efficient, 4-cartridge plotting system engineered for seamless CAD integration and reliable high-speed printing. Designed with a standardized die structure featuring separable machine head and foot components, it offers durable construction alongside intelligent output management.
Key Features & Capabilities
- Enhanced Software Compatibility: Fully compatible with both domestic and foreign CAD software. It natively supports standard formats like HPGL, PLT, and DXF, while custom formats can be integrated upon request.
- Optimized Output Management: The upgraded control software provides comprehensive functionalities, including rotation, mirroring, merging, and paging. It also features automatic print-length calculation and efficient file export capabilities.
- Calibration and Storage: Users can effortlessly manage calibration parameters and save print settings. If replacing a motherboard or computer, the system eliminates the need for secondary accuracy testing, ensuring smooth hardware transitions.
- Broad System Support: The operating software supports all major Windows platforms, including Windows 7, Windows 8.1, Windows 10, and Windows 11.
| Technical Specification | Details |
|---|---|
| Model | H185-4 |
| Print Width | 190 cm |
| Machine Width | 248 cm |
| Print Speed | Double Injection 90M²/h |
| Nozzle Type | HP45A |
| Drawing Materials | 48-100g news CAD paper |
| Mode of Paper Supply | Automatic paper feeding, automatic delivery |
| Resolution | 150-600 dpi (line thickness adjustable) |
| Compatible Software | Domestic and foreign CAD software, HPGL, PLT, DXF format, special format can be customized |
| Mode of Transmission | Port/LAN Wireless/USB drive-free interface |
| Power Supply Voltage | 220V 50Hz 120W |
| Machine Construction | Standardized die structure, machine head and foot two parts |
