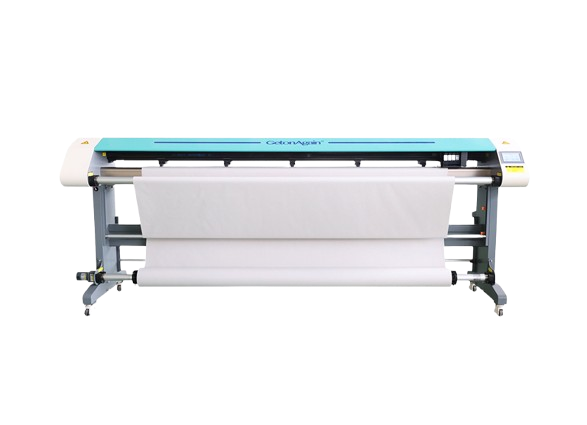

The Scope Pro Magic Inkjet Plotter is an advanced, industrial-grade printing solution engineered for speed, stability, and continuous mass production. Built with high-strength, aviation-grade aluminium plates, it delivers exceptional durability. With dual control capabilities via both the machine’s high-definition touch screen and your computer interface, it ensures enhanced efficiency and stable production for your cutting room.
Key Features & Innovations
- High-Speed Performance: Achieve maximum plotting speeds of $110\text{ m}^2/\text{h}$ with the 2-cartridge model, or scale up to $200\text{ m}^2/\text{h}$ with the 4-cartridge model.
- Superior Ink System: Features an independently developed ink supply system combined with standard HP45 ink cartridges for clear, consistent print quality.
- Precision Control: Driven by a servo motor control system that significantly improves printing precision.
- Smart Paper Handling: Includes an auto-tracking system with parallel tape automatic rewind, offering both automatic roll-up (rewind) and automatic drop-down modes.
- Automated Alerts: The system actively monitors production and triggers automatic alerts for paper jams or when the paper runs out.
- Versatile Output: Fully supports HPGL/PLT printing as well as bitmap printing functions.
- Continuous Production: Specifically designed to support both continuous and intermittent operation for long-term mass printing workflows.
Flexible Connectivity Options
The Magic Inkjet Plotter is designed to adapt to your specific factory IT infrastructure. Using the built-in RJ45 network hardware interface, you can configure:
- Multiple plotters linked to one computer
- One plotter linked to multiple computers
- Multiple plotters linked to multiple computers
Available Models
| Models | Plotting Width | Paper Width | Machine Size (L x W x H) |
|---|---|---|---|
| SN-MJ/2-160 | SN-MJ/4-160 | 1650mm | 1800mm | 2440mm x 590mm x 1016mm |
| SN-MJ/2-180 | SN-MJ/4-180 | 1850mm | 2000mm | 2640mm x 590mm x 1016mm |
| SN-MJ/2-200 | SN-MJ/4-200 | 2050mm | 2200mm | 2840mm x 590mm x 1016mm |
| SN-MJ/2-220 | SN-MJ/4-220 | 2250mm | 2400mm | 3040mm x 590mm x 1016mm |
Technical Parameters
| Specification | Details |
|---|---|
| No. of Cartridges | 2 / 4 |
| Cartridge Type | HP45 |
| Working Speed | 110 m²/h (2-Cartridge) | 200 m²/h (4-Cartridge) |
| Resolution | 0.025mm |
| Motor Type | Servo Motor |
| Supported Paper Weight | 40-120g (Max Load: ≤35kg) |
| File Format | PLT / HPGL / RPGL |
| Hardware Interface | Network Cable RJ45 |
| Power Supply | AC220V/110V ±10% 50/60Hz (Total Power: 0.4kW) |
