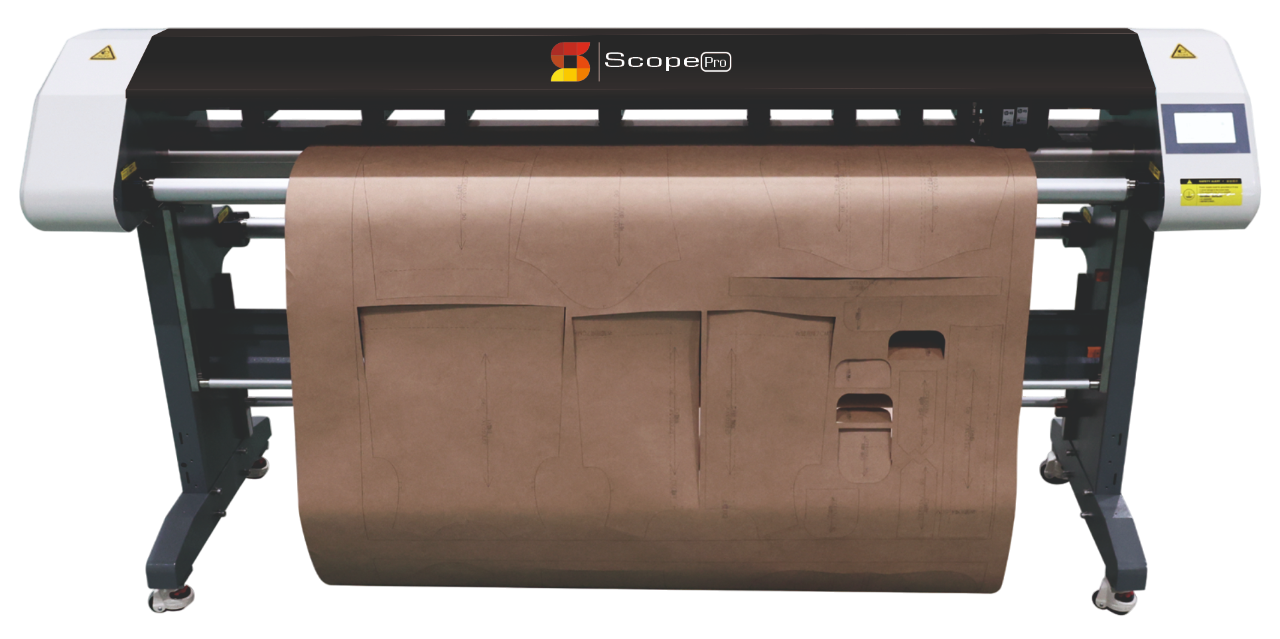

The Scope Pro Series Vertical Inkjet Cutter Plotter is a versatile, high-performance machine designed to streamline your sample design and production process. Engineered for both cutting and drawing, this all-in-one solution offers 5 to 7 times the efficiency of traditional manual methods, making it a highly cost-effective addition to modern cutting rooms.
Key Features & Advantages
- Multi-Functional Performance: One machine provides multiple functions, allowing for pattern drawing combined with cutting, or standalone drawing as needed.
- Cost-Saving Sample Design: Equipped with a high-quality rotary cutting knife capable of cutting a minimum of 80g/m² white paper, significantly reducing material costs for sample designs.
- High-Precision Hardware: Features a high-sensitivity tool holder with a tungsten steel blade and a full servo motor drive, ensuring that drawing and cutting are both faster and more stable.
- Reliable Ink System: Utilizes HP45 cartridges for plotting, which allows for extremely easy replacement of the nozzle.
- Seamless Software Integration: Fully compatible with mainstream CAD file formats in the market and supports bitmap printing functions.
- Production Upgrades: An optional double feeding structure is available to save even more time during heavy production cycles.
- User-Friendly Control: Operated via a modern touch screen interface for automatic, efficient, and precise control.
| Specification | SN-MJ/2-160-KC | SN-MJ/2-180-KC |
|---|---|---|
| Cutting and Drawing Width | 1600mm | 1800mm |
| Paper Width | 2000mm | 1800mm |
| Max. Paper Load | 35Kg | |
| Cutting Speed | ≤1000mm/s | |
| Cutting Tool | Rotating Knife | |
| Cutting Material Thickness | 80g material, thickness ≤200g | |
| Drawing Material Thickness | 40g~120g | |
| Feeding System | Automatic Feeding System | |
| Cartridge Type & Number | HP45 (2 Cartridges) | |
| Inkjet Resolution | 600 DPI | |
| Inkjet Printing Speed | 110 m²/h | |
| Motor Type | Full Servo Motor | |
| Data Format | PLT / HPGL / RPGL | |
| Data Port | RJ45 NET | |
| Voltage & Power | AC220V/110V ±10% 50/60Hz (0.4KW) | |
| Working Temperature | 0-40°C | |
